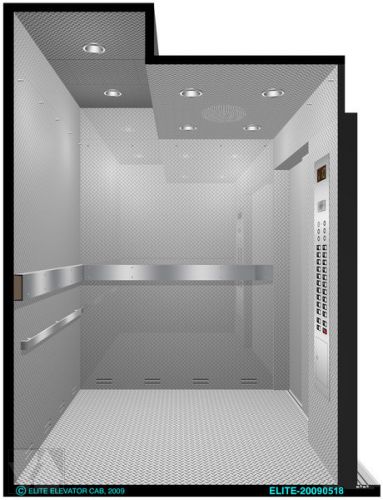

Elite-20090518 Specifications
Walls- Constructed of ¾” wood core backed on the hoistway side with 1/16” plastic laminate and fireproofed to meet code requirements.
Doors- Single speed, two-speed or center opening constructed of hollow metal faced with wrap around #4 satin stainless steel. Doors to be drilled and tapped to accept appropriate door operator.
Panels- Side, rear and front return walls faced flush with aluminum diamond plate.
Ceiling- Constructed of wood core backed on the hoistway side with 1/16” plastic laminate and fireproofed to meet code requirements. The ceiling is faced with aluminum diamond plate.
Lighting- Four to six recessed compact fluorescent light fixtures having protective lenses.
Entrance- Aluminum diamond plate.
Ventilation- Two speed exhaust fan with fan grille.
Accessories- Stainless steel chair rail on side and rear walls, 3/8” x 2” satin stainless steel handrail on rear wall, extruded aluminum sill, certificate frame, corner mirror (if necessary), aluminum pad buttons.
Doghouse- A raised section on the rear of the cab to the maximum allowable height faced with aluminum diamond plate (if possible).
