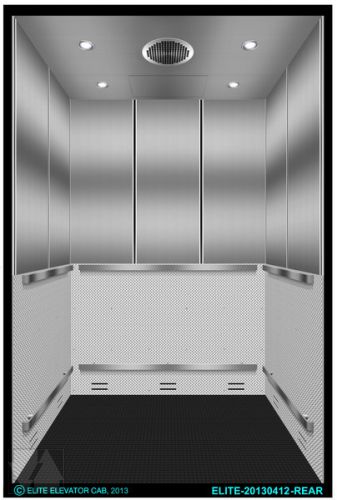

Elite Cab Design #20130412
Walls- Constructed of 3/4" wood core backed on the hoistway side with 1/16" plastic laminate and fireproofed to meet code requirements.
Doors- Single speed drilled and tapped to accept the appropriate door operator. Doors faced with wrap around rigidized stainless steel.
Panels- Side and rear walls faced flush with 1/8" brite aluminum diamond plate to a height of 48". Above the diamond plate are removable panels having aluminum extrusions between them with black laminate inserts. These panels are faced with rigidized stainless steel. A 3/8" x 2" stainless steel bumber rail separates the upper panels and lower aluminum diamond plate.
Ceiling- Constructed of wood core backed on the hoistway side with 1/16" plastic laminate and fire proofed to meet code requirements. The ceiling is faced with rigidized stainless steel.
Lighting- Four recessed LED light fixtures having protective lenses.
Entrance- Rigidized stainless steel.
Ventilation- Two speed exhaust fan with perforated flat aluminum grille.
Accessories- 3/8" x 2" satin stainless steel bumber rails on the side and rear walls, extruded aluminum sill, certificate frame, corner mirror, pad buttons.
Floor- Pirelli-type radial black rubber.
