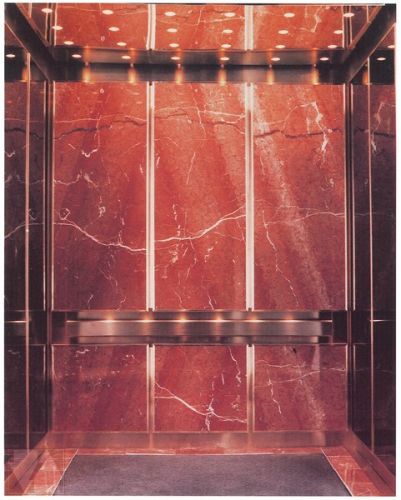

ELITE CAB DESIGN #5500 Specifications
Walls- Constructed of ¾” wood core backed on the hoistway side with 1/16” plastic laminate and fireproofed to meet code requirements - OR – constructed of reinforced steel and sound deadened.
Doors- Single speed, two speed or center parting, constructed of hollow metal faced with satin bronze. Doors are drilled and tapped to accept the appropriate door operator.
Panels- Rear Wall – Six (6) sections of polished marble having satin bronze binders on four (4) sides. Side Walls- Two (2) sections on each side of ½” safety laminated bronze glass mirror having satin bronze binders on four (4) sides.
Base and Reveals- Satin bronze.
Ceiling- Constructed of ¾” wood core backed on the hoistway side with 1/16” plastic laminate and fireproofed to meet code requirements - OR – constructed of reinforced steel and sound deadened.
Lighting- Suspended ceiling of ¾” wood core faced with mirror finished bronze having up to 24 small rimless polished and unthreaded low voltage downlights mounted into the ceiling.
Entrance- Satin bronze.
Ventilation- Exhaust fan with ventilating grille.
Accessories- Elliptical satin bronze handrail, bronze sill, bronze pad buttons, bronze certificate frame, corner mirror (if necessary).
